Visual Menu for Add-Ons

Last Updated on February 23, 2022 by Neil Murray

The Visual Menu for Add-ons is added in the InputItemMenu React component & utilizes the rc-menu package.

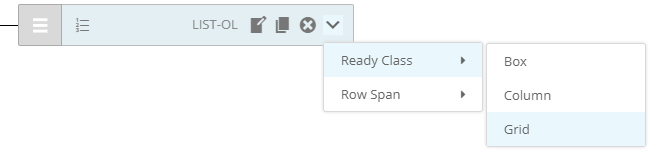

The drop-down menu is meant to operate like a right-click context sensitive menu in Windows. Each Add-on can add menu items which relate to the currently selected Form Item.

Component Structure #

<Menu>
    <SubMenu title="Ready Class">
        <MenuItem>Box</MenuItem>
        <MenuItem>Column</MenuItem>
       <MenuItem>Grid</MenuItem>
    </SubMenu>
    <SubMenu title="Row Span">
        <MenuItem>1</MenuItem>
        <MenuItem>2</MenuItem>
    </SubMenu>
</Menu>

React Menu Component (rc-menu) #

Main rc-menu props:

  • onClick for saving changes
  • selectedKeys to show selected menu on page load
  • getPopupContainer is the place to generate popup menu.

rc-menu | GitHub | Demo – React menu component.

Click Menu Event #

Clicking menu item will trigger Visual.clickMenu() function to update or save current rowInfo.

clickMenu() receives two parameters:

  • rowInfo (object) – current node is rowInfo.node passed from InputItemMenu
  • menu (object) – clicked menu contains name as menu name and index as clicked menu value plus key, title, items and types.

After updating the value, this function updates global rowInfo state. Any functions existing in Visual can be used inside Visual.clickMenu() function. Refer Menu Input Handling for detailed instructions.

Registering Menu #

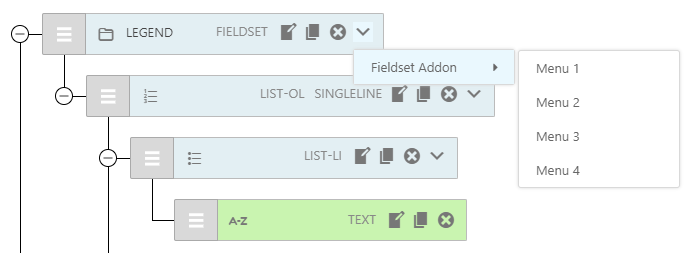

Add-ons can register their menu to specific node type using window.cf7svisual.addons.register.

To register an Add-on menu, we need to provide these parameters:

  • key (string) – cf7sItems key prop for saving and indexing
  • types (array) – only apply to specific cf7sItems types
  • title (string) – as the menu title
  • items (object) – list of menu item with value and label.
  • multiple (boolean) – default true, enable multi-selection, false for single-selection.

Example:

const readyMenu = () => {
    let menu = {};
    menu.key = 'cf7sReady';
    menu.types = ['list-ol', 'list-li'];
    menu.title = 'Ready Class';
    menu.items = [
        { value: 'box',        label: 'Box'},
        { value: 'column',     label: 'Column'},
        { value: 'grid',       label: 'Grid'},
    ];
    menu.multiple = false
    return menu;
}
// Register menu
window.cf7svisual.addons.register( 'menu', readyMenu );
