React Sortable Tree

Last Updated on April 17, 2022 by Neil Murray

React Sortable Tree (RST), a drag-and-drop sortable component for nested data and hierarchies, is a key feature of the CF7 Skins Visual interface.

We’ve found RST to be an excellent React library choice for CF7 Skins Visual. It provides a robust extensible package for a range of well documented use cases. RST is now developing well with ongoing support and strong community engagement.

Github | npm | Examples

Understanding React Sortable Tree hierarchy #

Node Object #

Each node in Visual + RST is a JavaScript object that may contain children in multi level depth and should have at least the node properties explained below.

// contains vital information such as the path of the currently edited node
// required to modify the tree structure in place with RST tree data util changeNodeAtPath

[ADD EXPLANATION – link to RST Docs]

Node Properties #

A CF7 Skins Visual node can contain RST & CF7 Skins properties.

RST Properties #

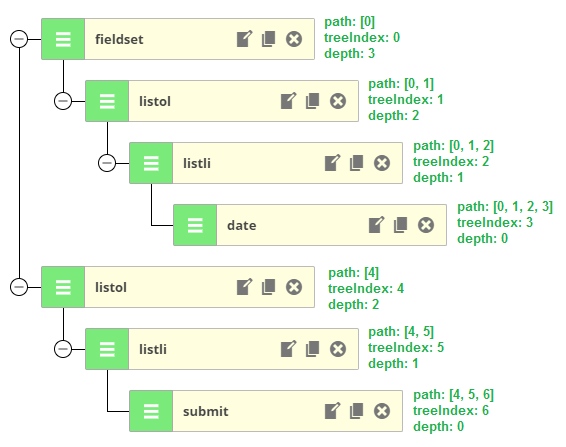

The basic RST properties used on a node are:

  • node – object, current node object
  • parentNode – object, parent node object
  • path – array, current row path
  • treeIndex – number, current row tree index

We don’t use the following RST object props in CF7 Skins Visual:
* title is the primary label for the node
* subtitle is a secondary label for the node

CF7 Skins Properties #

The basic properties used on most CF7 Skins nodes are:

  • cf7sType – string, node type.
  • cf7sSelectLabel – string, label for Visual form select.
  • cf7sSelectGroup – string, if group is part of CF7 or CF7 Skins.
  • cf7Name – string, name with dash and random number.
  • cf7sLabel – string, for node list <label /> tag.
  • cf7Required – boolean, if field is required or not.
  • cf7TagOptions – array, contains label, description and default value for each option.
  • cf7IdAttribute – string, CF7 ID attribute.
  • cf7ClassAttribute – string, CF7 class attribute.
  • cf7sIcon – string, uses dashicons and typcn icon.
  • noChildren – boolean, node children

Refer src/visual/util/cf7sItems.js for default node properties

rowInfo Object #

[ADD EXPLANATION]

/**
 * Example rowInfo object
 *
 */

{
    node: {…},
    parentNode: {…},
        {
            type: "fieldset",
            cf7Name: "fieldset-709",
            options: Array(1),
            id: 1479227071114,
            children: Array(2), …}
    path: Array(2),
    lowerSiblingCounts: Array(2), lowerSiblingCounts: (2) [0, 1]
    treeIndex: 1,
    isSearchFocus: false,
    isSearchMatch: false
…}

RowInfo object contains:

  • node – object, current node object.
  • parentNode – object, parent node object.
  • path – array, current row path.
  • treeIndex – number, current row tree index.

Not used by CF7 Skins Visual at this stage:

  • isSearchFocus – bool, for search, not used.
  • isSearchMatch – bool, for search, not used.
  • lowerSiblingCounts – number, total next siblings, not used.

[ADD IMAGE of inspecting the RowInfo object using Chrome Dev tools]

RST Data Helper Functions #

[ADD EXPLANATION]

  • changeNodeAtPath: Modify the node object at the given path.
  • map: Perform a change on every node in the tree.
  • walk: Visit every node in the tree in order.

Check out the Data Helper Functions exported from tree-data-utils.js

Select Area based on ‘Drag from external source’ example #

[ADD EXPLANATION]

Refer:

Styling #

RST Themes #

A themes feature has been enabled in RST – you can use the file explorer theme repo as a template for your own theme.

RST CSS Styling #

The library has been updated in v2.0.0 to not use style-loader any more, instead requiring you to import the styles yourself. This should allow you to override the styles easily yourself, by creating a modified version of the style.css file. Check it out! – Chris Fritz

Refer:

Alternatives #

Helpful #

Further Reading:
